Gigabit PoE 網路集線器(12Port)
nHUB-12P2U (12port PoE+ 2port UTP)
nHUB-12P2S (12port PoE+ 2port SFP)


● 有效節省施工成本 (線材, 埋管和人力成本)
● 真正可支援 12 埠PoE(gigabit) + 2 埠(UTP or SFP)
● Giga的頻寬可容納多組影音串流
● 光纖埠可讓間距更長, 訊號更穩定
● 可提供網路攝影機充足的電力
Gigabit PoE Hub 12+2 Port—designed in particular for IP CCTV industrial users.

Telexper’s Gigabit PoE Hub (12 Gigabit ports + 2 SFP/UTP port) optimizes your IP CCTV system network performance and minimizes your cost with these benefits of: centralized power distribution for PoE powered devices, high safety short circuit protection, OVP/OCP protection, and an optional 19” rack-mountable can be easily located in a server room to centralize power management and simplify entire network integration for various applications and environments.

12 RJ-45 ports featuring PoE function feed sufficient power (total max. consumption of 200W) to each camera or encoder and the hub feeds up to 7 layers, 700-meter long for UTP cable, over 70km long for SFP cable. Telexper’s 14-port Gigabit PoE Switch Hub is the perfect switch hub for IP CCTV industrial users.

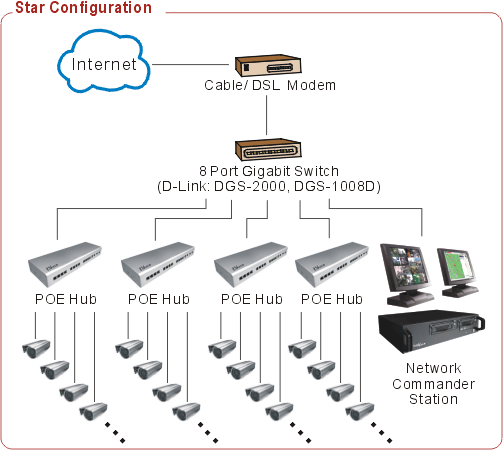

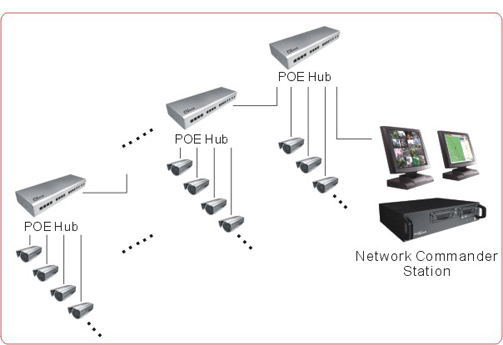

系統建議架構
